Metal Stud Framing & Drywall in Madison, WI — Commercial Metal Stud Framing and Drywall
Steel stud partitions framed to the assembly they have to satisfy, with the right gauge, proper deflection allowance at the deck, and blocking in before the board goes on. Serving Madison and Dane County.
Metal Stud Framing & Drywall in Madison, WI
Madison Elite Drywall is your local resource for metal stud framing and drywall throughout Madison and Dane County. We work with experienced commercial framers who treat the gauge, the track and the blocking as the specification rather than as preferences.
Metal stud framing is the standard for commercial interior partitions, and most of what determines whether it performs is decided before a single sheet of board goes up. Steel studs are dimensionally stable, they do not warp or shrink, they are non-combustible, and they are required by the listed assemblies most commercial rated walls are built to. What they are not is forgiving of the wrong specification.
The specification has three parts people routinely get wrong. Gauge is the first: non-structural studs are commonly 25 gauge at roughly 18 mils, while structural and load-bearing framing runs 20 gauge and heavier at 33 mils and up — and the phrase twenty gauge covers both a genuine 33-mil structural stud and a thinner drywall-grade product marketed under a similar name. Deflection at the head of the wall is the second: a partition fastened rigidly to a deck that moves will crack, and on a long-span structure it will crack quickly. Blocking is the third, and it is the one that generates the most avoidable rework.
Madison's commercial mix raises the stakes on all three. Lab and clinical fit-outs hang real weight on walls — casework, equipment, monitors, fixtures — and a partition framed at 25 gauge with no blocking will not carry any of it.
What’s Included in a Madison Metal Stud Framing & Drywall Quote
- Gauge selected for what the wall carries, not for what is cheapest on the pallet
- Track fastened to the substrate at the specified spacing with the correct anchors
- Deflection track or slip connection at the head of wall where the structure moves
- Studs spaced to the assembly requirement and set plumb before board goes on
- Blocking installed for casework, equipment, monitors, grab bars and wall-mounted loads
- Openings framed with proper headers and jamb reinforcement
- Bracing installed on tall partitions and above ceiling lines
- Board hung, fastened and finished to the specified assembly and finish level
Metal Stud Framing & Drywall in Madison, WI
Commercial Metal Stud Framing
Steel framing for commercial interiors, which is the default here and the required construction for most listed rated assemblies. Steel is dimensionally stable, so it does not shrink or warp and pull joints apart the way wood can, and it is non-combustible, which matters directly where a rating is involved. What it is not is forgiving of the wrong specification — gauge, spacing and head-of-wall detailing are the assembly rather than preferences within it.
Interior Metal Framing
The non-structural partitions that make up most of a commercial interior, typically 25 gauge at around 18 mils, spaced to whatever the assembly requires. These walls carry their own weight and the board and nothing else, which is entirely correct where nothing hangs on them. The failure comes from using them where something does — a monitor bracket, a cabinet run, lab casework — which is a gauge and blocking decision that has to be made before the wall closes.
Metal Stud Partition Walls
Partitions built to satisfy a specific requirement: a fire rating, an acoustic separation, or a tenancy line. Rated walls specify stud gauge, spacing, board type, layer count, fastener pattern and termination, and the rating belongs to the tested assembly rather than to the board alone. Acoustic walls add resilient channel, sound attenuation and careful perimeter sealing — and a well-built acoustic wall with an unsealed gap at the track performs like a wall half its specification.
Metal Framing for Tenant Build-Outs
Framing inside a leased space, where the constraints come from the work letter and the lease date rather than from the trade. Demising walls run to the underside of the deck and carry a rating; interior partitions are a judgment call about acoustics and cost. Blocking goes in against the tenant's actual list of wall-mounted items, which in Madison's lab and clinical fit-outs is a long list carrying real weight.
Drywall Installation Over Metal Stud Framing

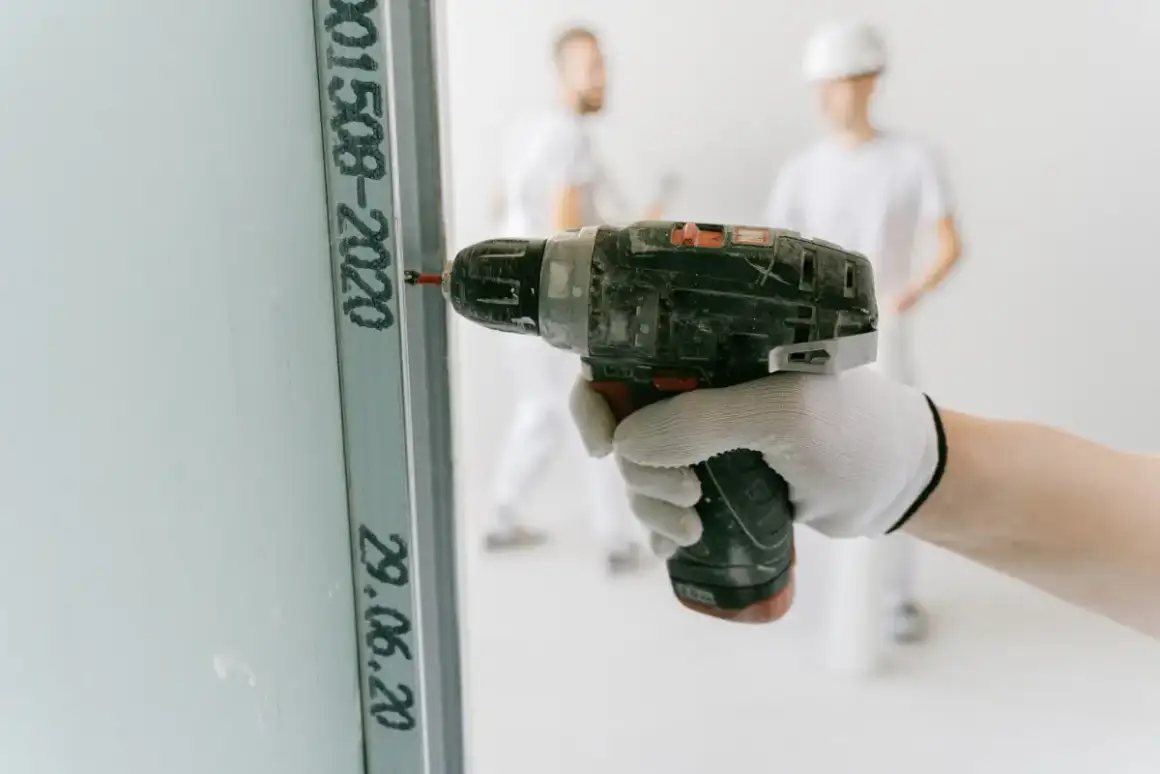

Boarding steel framing, which differs from wood in ways that show if they are ignored. Screws have to be driven at the right speed to bite without stripping the steel or breaking the paper face, sheets are hung so joints stagger and fall away from opening corners, and panels run in the direction the assembly specifies. On rated walls the fastener spacing is part of the listing rather than a rule of thumb, and second-layer joints are offset from the first.
Signs You Need Metal Stud Framing & Drywall
- A commercial partition that needs to satisfy a rated or acoustic assembly
- Anything heavy planned for a wall — casework, equipment, large displays
- Tall partitions or walls extending above a ceiling line
- A structure with real deflection where partitions meet the deck
- Existing walls cracking consistently along the head-of-wall line
- A build-out where blocking needs to go in before the walls close
How Metal Stud Framing & Drywall Works
- 1
Determine What the Wall Has to Do
Framing decisions follow from the wall's job. Is it rated, and to what listed assembly? Does it carry an acoustic requirement? What will be hung on it, and how heavy? How tall is it, and does it continue above the ceiling? Does the structure above deflect? Each answer changes gauge, spacing, track type or blocking, and answering them at layout costs nothing while answering them after boarding costs the wall. On rated work the listed assembly is read directly rather than approximated, because a rating is a property of the specific tested construction and not of the general approach.
- 2
Lay Out and Set the Track
Partition lines are laid out from the drawings and verified against the actual shell, which in older Madison commercial stock frequently means accommodating a floor that is not level and walls that are not square. Bottom track is anchored to the substrate at the specified spacing with anchors suited to what it is fastening into. At the head of wall, the track type is chosen for the structural condition: standard track where the structure is stable, deflection or slip track where it moves, and the specific listed detail where the wall is rated. Getting the head of wall right at this stage is what prevents cracks that would otherwise appear within a year.
- 3
Set Studs, Frame Openings, and Install Blocking

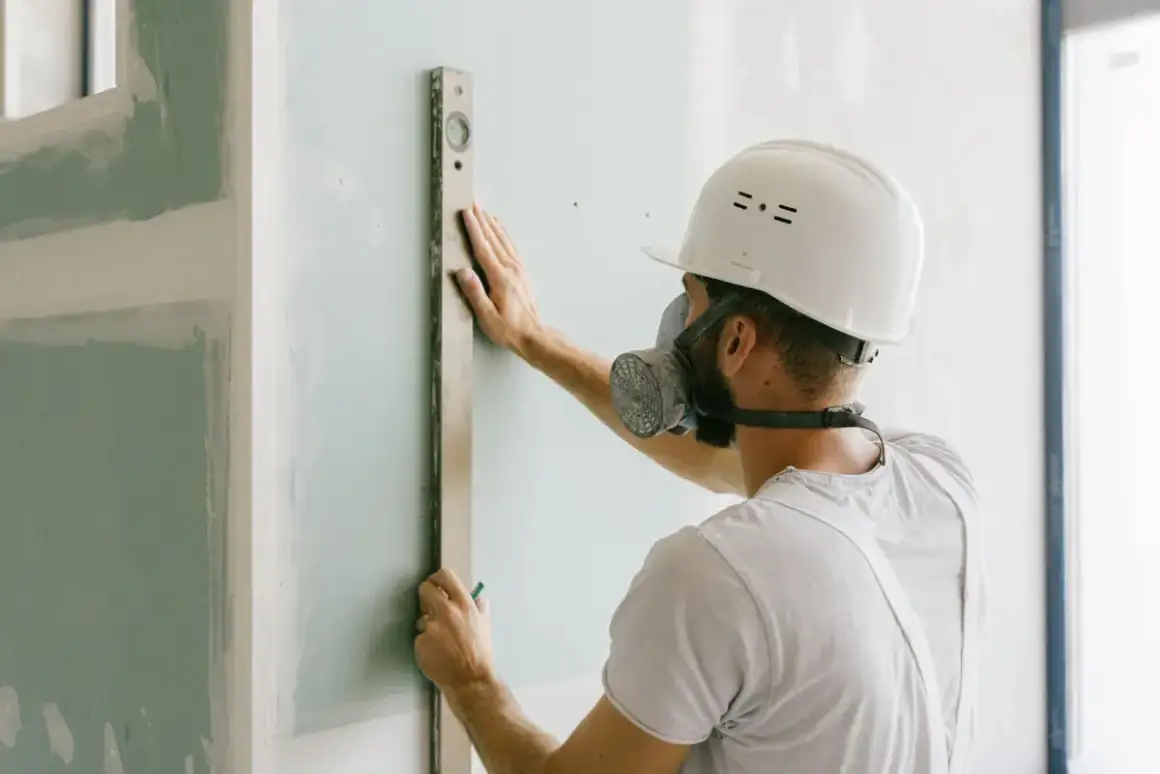

Studs go in at the spacing the assembly requires, seated properly in track and checked for plumb — a stud out of plumb telegraphs through the finished surface and cannot be corrected with compound. Openings get headers and jamb reinforcement sized for what they carry, since door openings in steel framing are a common weak point when the jambs are not reinforced and the door is used hard. Then blocking goes in against the tenant's actual list of wall-mounted items. Bracing is added on tall walls and above ceilings, where an unbraced partition is laterally weak precisely where nobody will ever see it.
- 4
Board, Fasten and Finish to the Assembly
Panels are hung with joints staggered and kept away from opening corners, fastened at the spacing the assembly specifies with screws set below the face without breaking the paper. Rated walls get the correct board type and layer count with second-layer joints offset from the first, and any penetration through a rated wall is firestopped to its listed detail. Acoustic walls get their attenuation and perimeter sealing. Finishing then runs to the specified level, matched to the building standard, and the wall is checked for plane before it is handed to the painter.
What Does Metal Stud Framing Cost in Madison, WI?
- Linear footage and wall height
- Stud gauge required, since structural steel costs considerably more than non-structural
- Stud spacing driven by the assembly
- Whether the wall is rated or acoustically specified
- Deflection track and head-of-wall detailing where the structure moves
- Quantity and type of blocking required
- Number of framed openings and their reinforcement
- Condition of the existing shell and how much accommodation it forces
| Service | Cost Per Sq. Ft. | Typical Job |
|---|---|---|
| New Drywall Installation | $1.50 – $3.00 per sq. ft. | $1,000 – $3,254 per project |
| Small Patch or Hole | $75 – $350 per patch | $300 – $500 for a contractor visit |
| Larger Wall Repair | $500 – $800+ per patch | Scales with how much board comes out |
| Ceiling Repair | $297 – $472 per hole | $220 – $1,300 for the full ceiling |
| Water-Damaged Drywall | $500 – $2,500+ | Depends how far the moisture travelled |
| Texture Matching | $150 – $450 per patch | Runs 30 – 40% above a smooth finish |
Based on 2026 national cost-guide data from Angi, HomeGuide, and Homewyse. Madison and Dane County rates land above or below these ranges depending on ceiling height, access, texture type, and how much board has to come out before new board goes back. Texture matching is the row that moves most often here, since so much of the local housing stock already has a sprayed finish to match into. You get a firm number after someone sees the job.
Gauge and assembly requirements move the number more than length does. A rated, acoustically treated, heavily blocked partition with deflection track at the deck costs several times an ordinary 25 gauge office partition per linear foot, and it should. The mistake worth avoiding is buying the cheap version where the specification called for the other one, because the cost of correcting it is not the price difference — it is the price difference plus removing and rebuilding finished work.
What to Look for in a Madison Metal Stud Framing Contractor
They Specify in Mils, Not Just Gauge
Twenty gauge covers both a genuine 33-mil structural stud and thinner drywall-grade product. A framer who names the mil thickness is telling you what you are actually getting.
They Detail the Head of Wall Properly
Deflection track is the difference between a wall that stays intact and a wall that cracks along the ceiling line within a year. It is also the first thing simplified out of a cheap quote.
They Ask What Is Going on the Wall
Blocking costs almost nothing while the wall is open. Retrofitting it means opening finished, painted surfaces, and it is the most common avoidable expense in commercial fit-out.
They Read the Listed Assembly
A fire rating belongs to a specific tested construction, not to a general approach. Framing that approximates a listed assembly has not achieved it.
Residential & Commercial Metal Stud Framing & Drywall
Residential
Residential interior framing is overwhelmingly wood and is not this service. Steel does appear in houses occasionally — basement partitions in damp conditions, where its resistance to moisture and mold is a genuine advantage — and that use is covered on the basement drywall page.
Commercial
Metal stud framing is the default for commercial interior partitions and the required construction for most listed rated assemblies. What separates competent work is not the framing itself but the specification decisions inside it: correct gauge for the load, proper deflection allowance where the structure moves, blocking installed against a real list, and rated assemblies built to their listed detail rather than to their general shape.
When Metal Stud Framing & Drywall Isn’t the Right Call
- Residential interior partitions, which are wood framed in nearly all cases.
- Projects where the gauge is being chosen on price without reference to what the wall carries. That decision surfaces the first time someone mounts something.
- Walls where deflection track is being value-engineered out of a structure that genuinely moves. The saving is small and the cracking is certain.
- Rated assemblies to be framed approximately rather than to the listed detail. A rating is a property of the tested construction.
- Projects outside Madison and Dane County.
Frequently Asked Questions
- What gauge steel stud do we need?
- It depends entirely on what the wall does. Ordinary non-structural office partitions carrying only board are commonly 25 gauge, around 18 mils. Anything structural, load-bearing, unusually tall, or supporting significant wall-mounted weight moves to 20 gauge and heavier at 33 mils and up. The trap is that gauge numbers are used loosely in the market — twenty gauge is applied both to a genuine 33-mil structural stud and to a thinner drywall-grade product. Specify and verify the mil thickness, particularly on anything with a structural role.
- What is deflection track and do we actually need it?
- It is a head-of-wall detail that lets the structure above move without transferring that movement into the partition. Structural decks and long-span floors deflect under load and with temperature. A wall fastened rigidly into that movement pushes it straight into the board, and the result is a crack running along the ceiling line. If the structure above the wall moves — and on most commercial framing it does — the track is not optional, it is what stops the crack. It is also frequently the first item removed from a low quote.
- Can I hang cabinets or a large display on a steel stud wall?
- Only if blocking was installed before the wall was boarded, or the framing is heavy enough gauge to carry it. Steel studs are strong along their axis but thin, and toggle-type anchors into 25 gauge steel will not hold meaningful weight over time. The right approach is deciding what goes on the wall before it closes and blocking accordingly. Retrofitting after the fact means opening finished, taped and painted surfaces, which is why the list is worth collecting during design rather than during move-in.
- Is steel framing better than wood for a commercial partition?
- For commercial interior work, yes, and not marginally. Steel is dimensionally stable, so it does not shrink or warp and pull joints apart the way wood can. It is non-combustible, which matters directly in rated assemblies. It is consistent, so every stud is straight. And most listed commercial rated assemblies specify it, meaning the choice is often made for you. For residential interior framing the calculation is different and wood remains standard.
- Why do commercial walls crack along the ceiling line?
- Almost always because the head of wall was fastened rigidly to a structure that moves. The deck deflects, the partition is attached to it without a deflection allowance, and the movement goes into the board as a crack that follows the joint. Repairing the crack without correcting the connection means repairing it again. This is worth diagnosing before patching, because the pattern — a long straight crack tracking the ceiling line rather than radiating from a corner — usually identifies the cause on sight.
- Does the framing affect the fire rating or just the board?
- The framing is part of it. A listed assembly specifies stud gauge and spacing along with board type, layer count, fastener pattern and termination details, and the rating applies to that whole tested construction. Changing the stud spacing or the gauge from what the listing calls for means the wall is no longer the assembly that was tested, regardless of the board on it. This is why rated work is built to a specific listing rather than to a general understanding of how rated walls go together.
Learn More
- Steel Framing Industry Association — technical resources on cold-formed steel framing gauges, spans and detailing
- UL Product iQ — listed fire-rated assembly database covering stud gauge, spacing and head-of-wall details
- Association of the Wall and Ceiling Industry — trade association guidance on steel framing and drywall practice
